Panel Front Side Fastening M12 5 Pin Male Connector With 90 Degree PCB Contacts

Product Categories
Dongguan Cableforce Electronics Co., Ltd
Contact Now

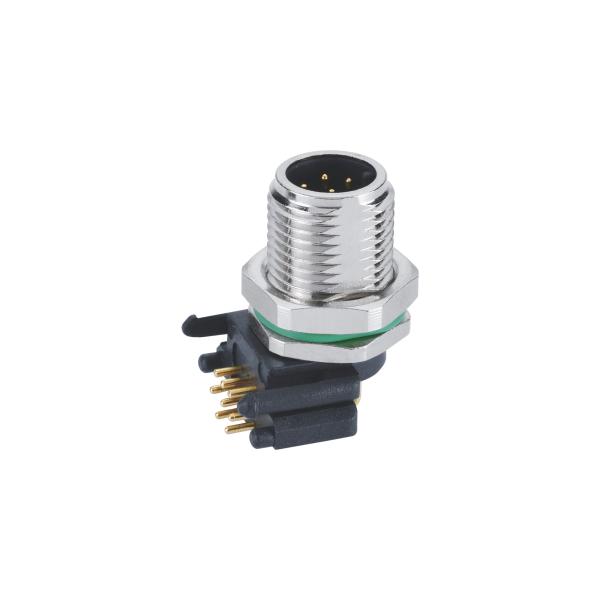

Panel Front Side Fastening M12 5 Pin Male Connector With 90 Degree PCB Contacts

  • 1
  • 2

Brand Name : CABLEFORCE

Model Number : MC05P1RPAB12

Certification : UL Certified, CUL Certified, CE/ EMC, IP67, IP69K

Place of Origin : Guangdong, China

MOQ : 100

Price : Negotiated

Payment Terms : T/T

Supply Ability : 60000 pcs/month

Delivery Time : 2~3 weeks

Packaging Details : Our standard packing: Individual part with transparent PE bag with label, OEM packing available.

Connector Type : M12 5pin right angled PCB panel connector

Termination : PCB Dip Soldering

Gender : Male

Contact : Brass

Reference Standard : IEC 61076-2-101

Rated Current : 4A

Rated Voltage : 60V

Locking System : M12*1.0 Screw

Poles : 5 Pin

Contacts carrier : PA66+GF

Pollution Degree : IP67,IP68

Keywords : M12 Connector

Screw nut : Brass, CNC, Nickel-plated

Contacts plating : Au(Gold)

Contact Now

M12 5 Pin Male Connector Panel Front Side Fastening With 90 Degree PCB Contacts
Connector Technical Data
Contacts No. MC05P2RPAB12
Rated current 4A
Rated voltage 60V
Impulse voltage 2500V
Locking system M12*1.0 Screw
Termination PCB Dip Soldering
Tightening Torque 0.6Nm
Rated temperature Flexible: -25℃ ~ +80℃;Static:-40℃ ~ +105℃
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Contact Brass
Contacts plating Au(Gold)
O Ring FKM,Silicon
Pollution Degree
3
Description

The M12 metric size A-Coding connectors, based on IEC 61076-2-101 standard, it is the most commonly used connector in the factory automation. M12 A-Coding connectors mainly designed for sensor and actuator devices. CABLEFORCE M12 A-Coding connectors are developed and designed for harsh industrial and climatic environments, e.g. High temperature range endurance, Hydrolysis resistant, Oil resistant, Corrosion resistant, UV-Resistant, Abrasion resistant, Bending and Drag Chain applicable. M12 A-Coding is a specified single keyway design; differentiate itself from B, C, D, X, S, T, K, L, M, Y-Coding.

● 2 pin, 3 pin, 4 pin, 5 pin, 7 pins, 8 pin, 12 pin, 17 pins
● PCB contacts, Solder type with (custom wire specification)
● Stainless steel and Plastic connector available
● Voltage rating: 600V, 250V, 60V, 30V
● Current rating: 16A, 4A, 3A, 1.5A
● IP67, IP69K protection degree
● Anti-vibration

Cableforce Core Benefits

● Safe and reliable system that is easy to install
● Samples & prototyping
● Manufactured, assembled and tested in our facility
● Certified cables on request
● Custom labels & packaging
● CE, IP67, UL certified
● RoHS and REACH compliant
● Vibration proof connections
● Free of halogen, LSZH
● Free technical drawings


Application Of M12 Circular Connector
Our products are widely used in LED lighting, outdoor soft strip display, electrical equipment, automated robots, electric bicycles, ships, electric vehicles, etc.

  1. LED lighting
  2. Ships
  3. outdoor soft strip display
  4. automated robots
  5. electric bicycles
  6. electrical equipment
  7. electric vehicles

FAQ

● Do you provide Customized service?
Yes, Cableforce provide Customized service and Technical Drawings to you to confirm whether meet your requirments before produce .And our enginers have more than 10 years experience for waterproof connector industry.
● How about CABLEFORCE Product Application?
Our products are widely used in Factory Automation,Rail Transit ,Boat ,PLC,Motor and Sensor.
● What is CABLEFORCE Mission?
Globally supplying customers with excellent quality cable and connectors at affordable price,to create better life for our staff, shareholders,suppliers,and related parties.
